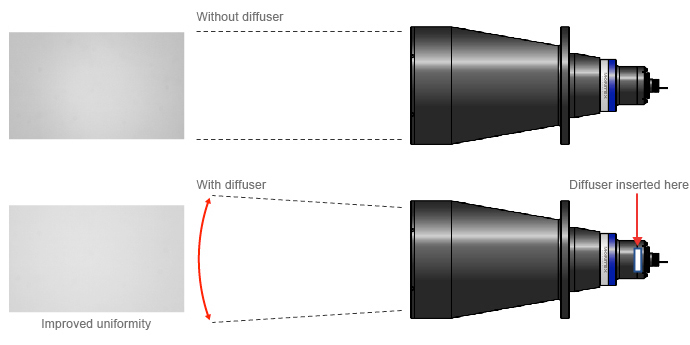

When a diffuser is used there is no longer a complete positional light source and light can be diffused around 3.2 degrees for irradiation. This makes it easier to adjust the angle during setup and provides more uniform images. However, there is larger light diffraction on the object which can possibly result in poorer measurement accuracy.
.jpg)
Light diffraction makes it possible to check surface condition and the inside
Provides an image somewhere in between an ordinary backlight and telecentric backlight
The surface condition and inside cannot be checked because there is no light diffraction, but the profile is clearly visible, which emphasizes the edges
Light diffraction makes it possible to check the surface condition with a telecentric lens that has a large depth of field. The profile is not clear and contrast is low
Provides an image somewhere in between an ordinary backlight and telecentric backlight
The profile is clear because there is no light diffraction, making it possible to capture accurate measurements of dimensions
Profile is visible using the backlight
The inner side of the profile is illuminated and contrast low
The profile is dark to the edges providing high contrast
Profile is visible using the backlight
e profile part is not clear and contrast low
The profile is dark to the edges providing high contrast
etters visible using the back light
The boundary is not clear and contrast is low
The boundary is very clear and contrast high
