LED Illumination LED Controllers

LED Controllers

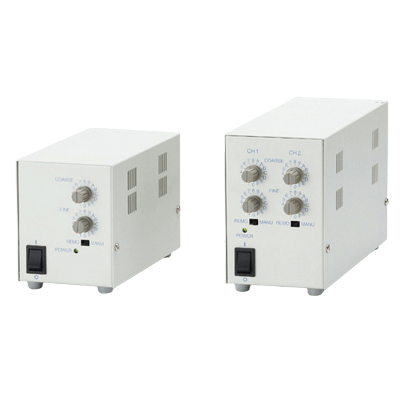

MLEK-A120W2LR-100V

▪ Output current max. 1.2A. Applicable to most MG-Wave illumination
▪ External control : Analog dimming type (DC0-5V)
▪ Multi voltage input (AC100-240V) supported
▪ CE marking conformity

Download Data Technical Datasheet Drawing Data Drawing Data（STEP）

Specifications

Spec
MLEK-A120W2LR-100V

AC Type
100 V

Output
2 channel output, max. 1.2A for each channel/total max. 1.2A

Input Voltage
AC100 - 240V 50/60Hz

Input Current
0.35/0.20A (at AC100/240V)

Rushing Current
max.15/36A(at AC100/240V）

Operating Temperature
0~+45C°

Operating Humidity
Maximum 80%RH for temperatures up to 31℃ decreasing linearly to 50%RH at 40℃

Output Control
Constant current control

Output Characteristics
Continuous DC output

Remote Control
Yes (0-5V analog output control)

ON/OFF control
Yes

Output Error signal
No

Cooling Method
Air-cooling

Installation Method
Horizontal installation on rubber feet.

Mass
Approximately 1.3kg

Dimensions
W75 x H110 x D190 (Protuberances excluded)

International Protection Degree
IP30 (EN60529)

CE Marking
Low Voltage Directive : 2014/35/EU
EMC Directive : 2014/30/EU
RoHS Directive : 2011/65/EU, 2015/863

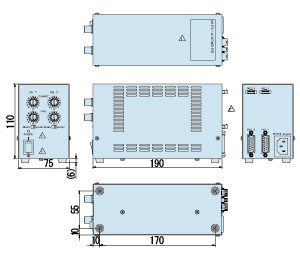

External View
