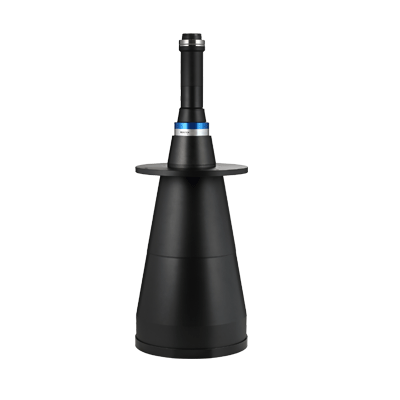

| Spec | MTL-10057V74-057 | |||
|---|---|---|---|---|
| Max IF (mm) | 57.3 | |||
| FOV type (Φmm) | 100 | |||
| Mag. (x) | 0.574 | |||
| WD (mm) | 220 | |||
| Field of View | 4/3" | H | 14.1 | 32 |
| V | 10.3 | 24 | ||
| D | 18.1 | 39 | ||
| 35mm | H | 18.1 | 40 | |
| V | 13.6 | 40 | ||
| D | 22.6 | 57 | ||
| 43.5mm | H | 23 | 63 | |
| V | 23 | 41 | ||
| D | 32.6 | 76 | ||
| 57.3mm | H | 36.2 | 85 | |
| V | 24.1 | 51 | ||
| D | 43.5 | 99 | ||
| Optical specifications | Effective F# | 15.0 | ||
| Distortion | (%) | 0.03 | ||
| Telecentricity | (deg.) | 0.03 | ||
|
Resolution @520nm |
(μm) | 16.6 | ||
|
DOF @40um |
(mm) | 3.6 | ||

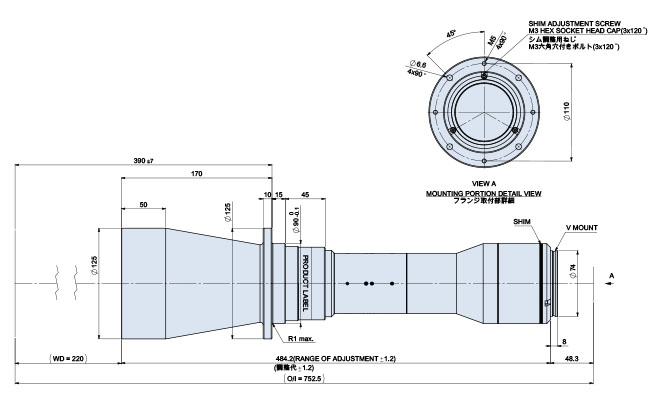

| Mechanical specifications | Front Outer dia. | (Φmm) | 125 | |
| Barrel Length | (mm) | 488.2 | ||
| Weight | (kg) | 3.01 | ||
| Mount | V74 | |||
