MTL-3557V74-164

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ V74Mount : Can be connected to CA-V74 Series
MTL-3557V74-164
Download Data User Manual Drawing DataDrawing Data (STEP)
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-3557V74-164
Max IF (mm) 57.3
FOV type (Φmm) 35
Mag. (x) 1.636
WD(mm) 95
Field of View 4/3" H 14.1 11
V 10.3 8
D 18.1 14
35mm H 18.1 14
V 13.6 14
D 22.6 20
43.5mm H 23 22
V 23 15
D 32.6 27
57.3mm H 36.2 30
V 24.1 18
D 43.5 35
Optical specifications Effective F# 15.0
Distortion (%) -0.03
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 5.8
DOF
@40um 		(mm) 0.4
Mechanical specifications Front Outer dia. (Φmm) 60
Barrel Length (mm) 295.1
Weight (kg) 1.26
Mount V74

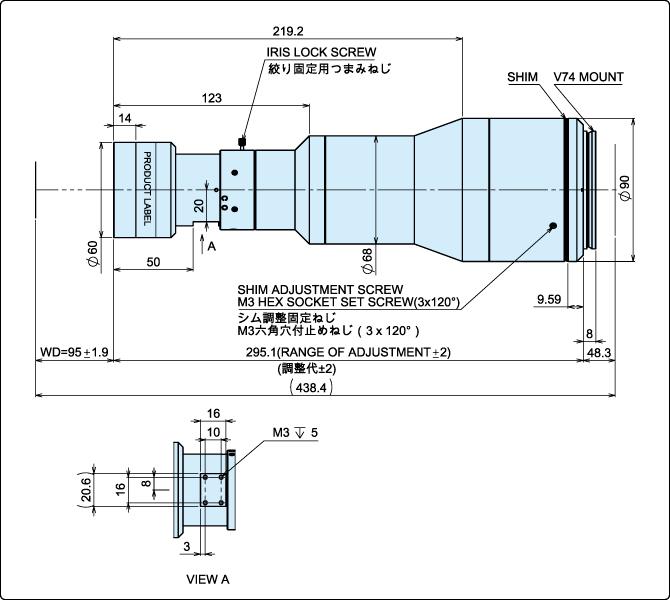

External View
