MTI-45-CW-070

Telecentric Lens Bi-Telecentric Lens/Illumination Macro/CCTV Lens Line Scan/Large Format Lens

Bi-Telecentric Lens/Illumination

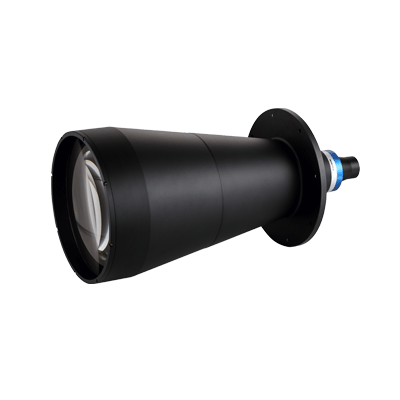

MTI-45-CW-070

▪ High performance parallel light back light
▪ 45mm effective emission diameter
▪ Available in two colors: green and white
▪ Maximum rated current is 700mA and electrical power consumption is 3W. Recommended controller is MLEP-B070W Series
▪ Blue color and red color is production on demand basis
▪ Constant voltage operation type is available on your request
▪ 1 Lens tube length includes LED illumination unit, and adjustable length allowance is 2.5mm maximum depends on LED Inspection data provided for every lens

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec
MTI-45-CW-070

Color
White

Lighting Area (φmm)
45

WD (mm)
115

Color temperature (K) Min. - Max.
4500～10000

Dominant wavelength (nm) Min. - Max.
-

Beam angle (deg.)
0～0.43

Length (mm) *1
156.4

Front Outer dia. (φmm)
65

Weight (kg)
0.58

Max rated current (mA)
700

Power consumption (W)
3

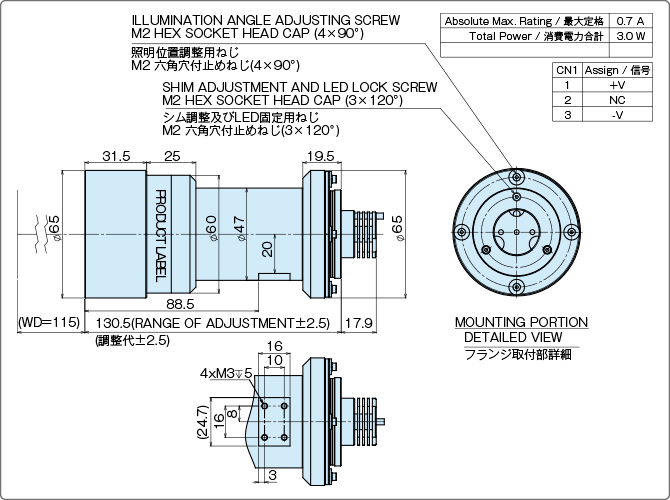

External View

Light Distribution Characteristics

・Maximum rated current is 700mA and electrical power consumption is 3W.
・Recommended controller is MLEP-BO70W Series.
・Blue color and red color is production on demand basis.
・Constant voltage operation type is available on your request.
*1 Lens tube length includes LED illumination unit, and adjustable length allowance is 12.5mm maximum depends on LED.
Inspection data provided for every lens.
