LED Illumination

• Spec
• MPL-SC56

• Series Name
• Polarizing Plates: MPL Series

• Product Name
• Polarizing Plates for Simulated Coaxial Illumination

• Compatible Illumination Model Name
• For MSCL-C *56

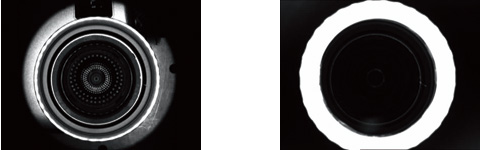

• Imaging Example
• -

• Illumination Structure
• -

• Light Distribution Characteristics
• -

• Thread pitch
• -
• Polarizer
• Polarizer(with locking screw)

• 255
• Model name
• ML-PL255
• ML-PL255LB

• 255
• Product code
• A-8067
• A-3130

• 270
• Model name
• ML-PL270
• ML-PL270LB

• 270
• Product code
• A-8068
• A-3131

• 305
• Model name
• ML-PL305
• ML-PL305LB

• 305
• Product code
• A-8069
• A-3132

1. Attach the polarizing plate to the light emitting part on the projection side.
2. Attach the polarizer to the lens tip.
3. Rotate either of the polarizing plates (polarizer/analyzer) to change the luminance distribution of the image.
This process can be used to cut specular reflection in particular areas and reduce some of the glare in the resulting image.
