▪ Designed for large format camera（Diagonal 28/35/43mm); ▪ High resolution, compatible with 1.1” 3.2μm sensor.
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
Model
MML3-HR80DVI-43F
Magnification (x)
3
O/I [mm]
373
WD (mm)
80
Resolution (μm)
2.6~5.1
Depth of Field (mm)
0.1~0.2
NA
0.13~0.066
Effective Fno
11.5~22.6
IF (mm)
43.5
TV Distortion (%)
≤-0.006
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm; *2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

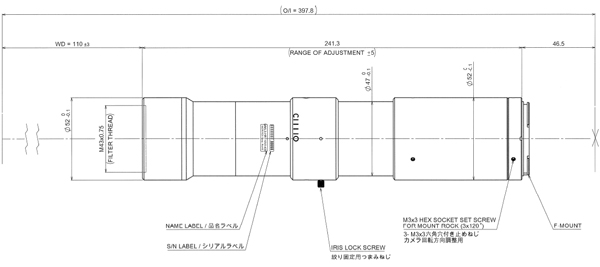

External View
