LED Controllers

Download Data Drawing Data Drawing Data（STEP）

Main Applications

• Electronic component/IC chip appearance inspection
• Bottling/ampoule inspection for food, pharmaceuticals, and cosmetics
• Can manufacturing inspection (labeling, text, codes)
• Automotive component shape appearance inspection

Specifications

• Spec

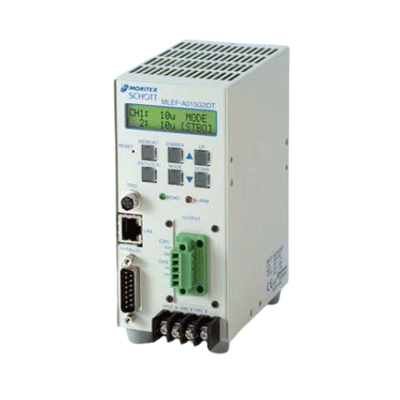

• MLEF-A015G2DT

• Output Voltage
• PWM/STB : 24 V ,STBO : 40 V

• Output Current
• PWM/STB：125A； STBO:4.0A

• Output Power
• PWM: 30 W (total for 2 ch); STB: 15 W (per ch)

• Efficiency
• 70%

• Input Voltage
• DC24V±10%

• Input Current
• Max,1.8 A

• Operating Temperature/Humidity
• 0℃-45℃: Line shape decrease to 80% RH at 31℃; 50% RH at 40℃

• Output Format
• -

• Output Control Method
• -

• External Interface
• LAN, parallel (8 bit)

• PWM Mode
• PWM frequency: 100 Khz (light intensity control: 250 steps)

• STB Mode
• Irradiation time: 1.1 ms-10.0 ms (90 steps in 0.1 ms increments)

• STBO Mode
• Irradiation time: 10 μs-1000 μs

• Error Output
• Output cut based on overcurrent/overvoltage/overtime detection

• Cooling Method
• Natural cooling

• Installation Method
• Installed with rubber legs placed on a flat surface/DIN rail installation

• External Dimensions
• W65 X H140 X D99 (Projecting parts excluded)

• Weight
• Approx. 800g
