LED Illumination LED Controllers

LED Controllers

MLEP-B070W1LRD-200V


▪ These products are dedicated controllers for the MCEP-CR(CG, CB, CW)8-070-3 Series, MCEP-CR(CG, CB, CW)8 Series, and MSPP Series.
▪ Models are digital light intensity control units.
▪ It automatically recognizes the maximum current 350mA or 700mA.




MLEP-B070W1LRD-200V
Download Data Drawing Data Drawing Data（STEP）
Specifications
  • Spec
  • MLEP-B070W1LRD-200V
  • AC Type
  • 200 V
  • Output
  • 1 channel output 350mA/700mA
  • input Voltage
  • AC100 - 240V 50/60Hz
  • Input Current
  • 0.11/0.07A （at AC100/240V）
  • Inrush Current
  • 16/40A or less （at AC100/240V）
  • Operating Temperature
  • 0~+45C°
  • Output Format
  • DC continuous output
  • Output Control Method
  • Constant control current (variable current)
  • External light intensity control function
  • Yes(8-bit digital)
  • Lighting ON/OFF function
  • Yes(photo coupler insulation type)
  • Cooling Method
  • Natural cooling
  • Installation Method
  • Installed with rubber legs placed on a flat surface
  • Weight
  • Approximately 0.7kg

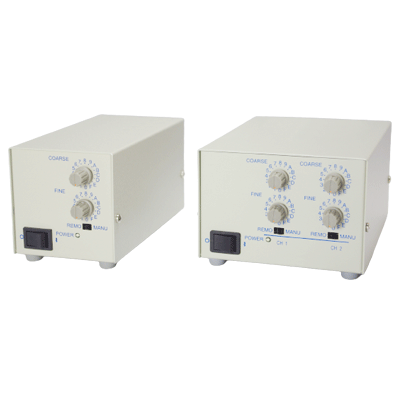

External View
Connection Specifications Common to MLEP-A035W1LRD/3LRD and MLEP-A070W1LRD/3LRD
  • NO.
  • Name
  • 1
  • 8-bit digital input 20 (LSB)
  • 2
  • 8-bit digital input 21
  • 3
  • 8-bit digital input 22
  • 4
  • 8-bit digital input 23
  • 5
  • 8-bit digital input 24
  • 6
  • 8-bit digital input 25
  • 7
  • 8-bit digital input 26
  • 8
  • 8-bit digital input 27 (MSB)
  • 9
  • COMMON (+)
  • 10
  • External 0-5 V analog light intensity control signal input
  • 11
  • Output ON/OFF signal (input)
  • 12
  • NC
  • 13
  • NC
  • 14
  • NC
  • 15
  • NC
Input/Output Circuit Connection ExampleCommon to MLEP-A035W1LRD/3LRD and MLEP-A070W1LRD/3LRD
