LED Illumination LED Controllers

LED Controllers

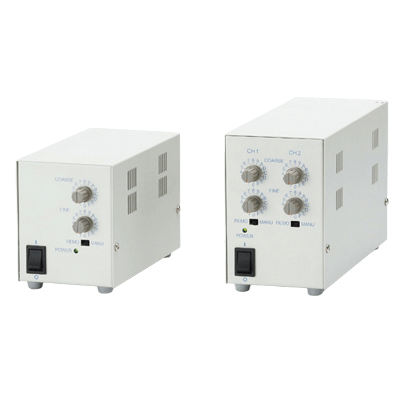

MLEK-A120W1LRD-200V

▪ Output current max. 1.2A. Applicable to most MG-Wave illumination
▪ External control : Digital dimming type (8bit)
▪ Multi voltage input (AC100-240V) supported
▪ CE marking conformity


MLEK-A120W1LRD-200V
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Specifications
  • Spec
  • MLEK-A120W1LRD-200V
  • AC Type
  • 200 V
  • Output
  • 1channel max. 1.2A
  • Input Voltage
  • AC100 - 240V 50/60Hz
  • Input Current
  • 0.35/0.20A (at AC100/240V)
  • Rushing Current
  • max.15/36A(at AC100/240V）
  • Operating Temperature
  • 0~+45C°
  • Operating Humidity
  • Maximum 80%RH for temperatures up to 31℃ decreasing linearly to 50%RH at 40℃
  • Output Control
  • Constant current control
  • Output Characteristics
  • Continuous DC output
  • Remote Control
  • Yes (8bit digital output control)
  • ON/OFF control
  • Yes
  • Output Error signal
  • No
  • Cooling Method
  • Air-cooling
  • Installation Method
  • Horizontal installation on rubber feet.
  • Mass
  • Approximately 1kg
  • Dimensions
  • W75 x H90 x D150 (Protuberances excluded)
  • nternational Protection Degree
  • IP30 (EN60529)
  • CE Marking
  • Low Voltage Directive : 2014/35/EU
    EMC Directive : 2014/30/EU
    RoHS Directive : 2011/65/EU, 2015/863
External View
