LED Illumination LED Controllers

LED Illumination

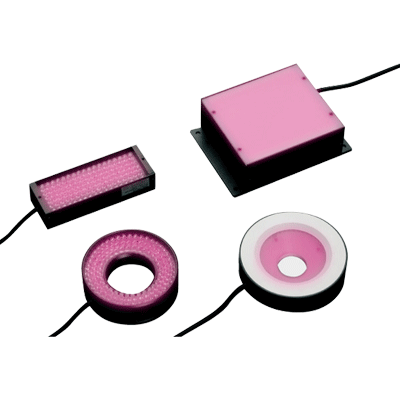

CV-BA-42X15IR

▪ Peak wavelength of 940 nm for.

▪ Provides high-contrast recognition of images that are often difficult to produce with visible light.

▪ Effectively illuminates materials that react chemically to visible light rays.

▪ Using IR Series models with infrared-compatible cameras and our lenses delivers highly effective results

▪ Achieves higher reflectance for 940-nm gold (Au) than visible light.

CV-BA-42X15IR
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Recognition of gold wiring
• Internal recognition of plastic bottles (with film)

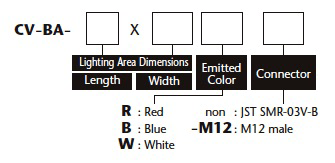

Model Description


Specifications
  • Spec
  • CV-BA-42X15IR
  • Emitted Color
  • IR
  • Power(W)
  • 0.9
  • External Dimensions (Length) (mm)
  • 52
  • External Dimensions (Width) (mm)
  • 17
  • External Dimensions (height) (mm)
  • 21.5
  • Lighting Area Dimensions (Length) (mm)
  • 42
  • Lighting Area Dimensions (Width) (mm)
  • 15
  • Weight(g)
  • 35

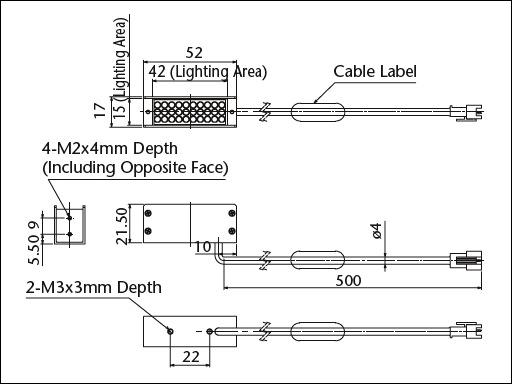

External View
Illumination structure
Imaging examples
With an IR backlight LED(MDBL-CIR70)

With an IR backlight LED(MDBL-CW70)
With an IR direct ring LED(MDRL-CIR31)

With a white, direct ring LED(MDRL-CW31)
