LED Illumination

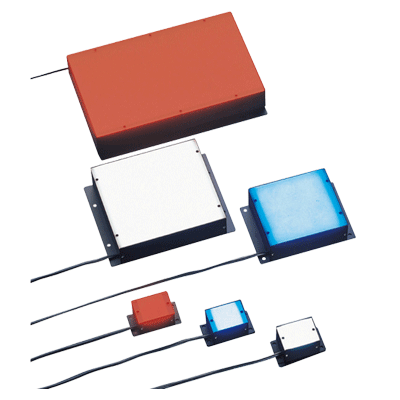

MDBL-CR25

▪ With discreet type LEDs mounted immediately beneath the light-emitting face, this series produces higher brightness levels than edge type products.

Download Data Drawing Data Drawing Data （STEP）

Main Applications

• Lead frame inspection
• Electronic component appearance inspection
• QFP/SOP lead curve inspection
• Transparency film dirt inspection
• Various types of silhouette observation

Model Description

Specifications

Spec
MDBL-CR25

Color
Red

Maximum Rated Current (A)
0.14

Light Emitting Part Dimensions (mm)
25×25

Weight (g)
60

External View

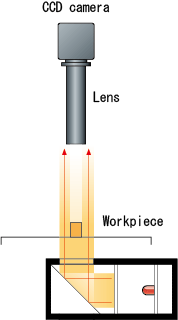

Illumination structure

Imaging examples

Connectors

Connectors Adhesive plaster
