LED Illumination LED Controllers

LED Illumination

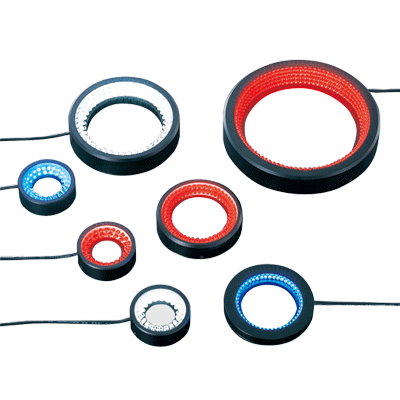

CV-RLA-200X170-00B(-M12)

▪ Providing horizontal illumination from 0 degrees, these models can be installed at extremely short working distances.
CV-RLA-200X170-00B(-M12)
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• BGA solder ball position/shape/area inspection
• Laser marking reading
• Wafer/glass substrate scratch/dirt inspection
• Other edge extraction inspection, etc.

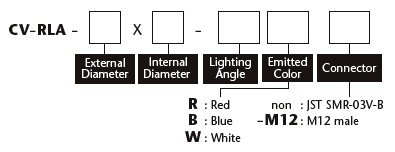

Model Description


Specifications
  • Spec
  • CV-RLA-200X170-00B(-M12)
  • Emitted Color
  • Blue
  • Power(W)
  • 5.9
  • External Diameter(mm)
  • 200
  • Internal Diameter(mm)
  • 170
  • External Dimensions (height) (mm)
  • 10
  • Lighting Angle(°)
  • 0
  • Weight(g)
  • 160

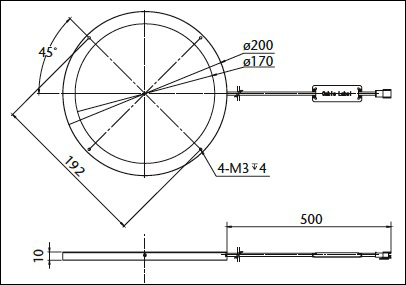

External View
Illumination Structure

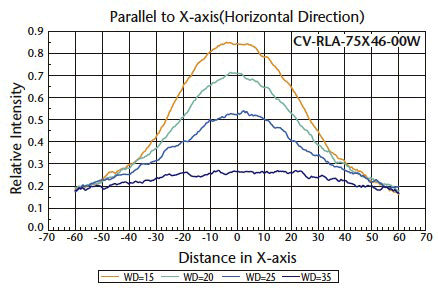

Light Distribution Characteristics
Imaging examples Scratch on Glass PlateChamfer Checking on Metal Ring
