LED Illumination LED Controllers

LED Illumination

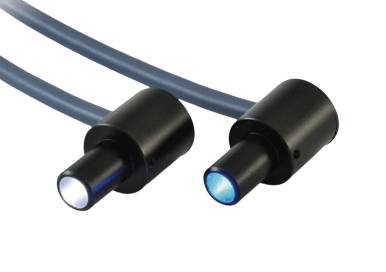

CV-CE-14X8B

▪ Fully compatible with MORITEX telecentric lenses MML Series, achieving high illumination uniformity.
▪ Even smaller in size than previous models.
▪ L-shaped (right-angled) illumination cable contributes to saving installation space.



CV-CE-14X8B
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Alignment of LCD
• OCR of wafer
• Inspection of electric parts

Model Description


Specifications
  • Spec
  • CV-CE-14X8R
  • Emitted Color
  • Blue
  • Power(W)
  • 0.8
  • Tip Diameter (mm)
  • 8
  • Maximum External Diameter (mm)
  • 14
  • External Dimensions (Length) (mm)
  • 27
  • Weight(g)
  • 18

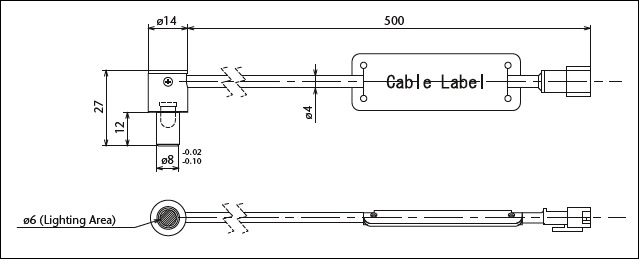

External View

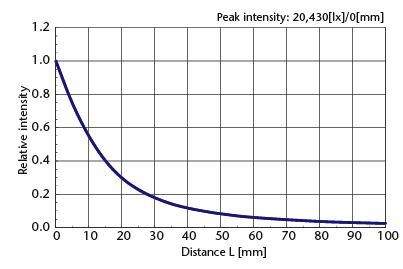

Light Intensity Characteristic

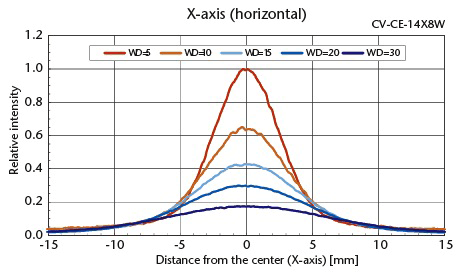

Light Distribution Characteristics
