Telecentric Lens

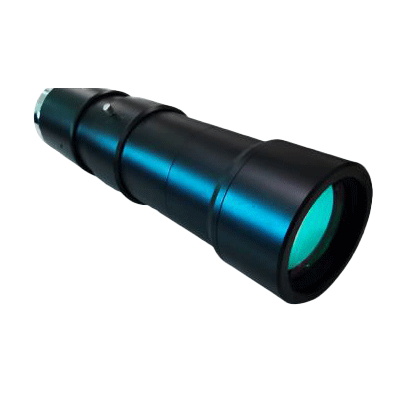

MML2.5-HR110DVI-43F-SWIR

▪  Dedicated near-infrared design (770~1200 nm);
▪  Designed for special application,match with IR camera and IR illumination.
MML2.5-HR110DVI-43F-SWIR
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection


Model Description


Specifications
  • Spec
  • MML2.5-HR110DVI-43F-SWIR
  • Magnification (x)
  • 2.5
  • O/I(mm)
  • 359
  • WD (mm)
  • 115
  • Resolution (μm)
  • 9.46~24.2
  • Depth of Field (mm)
  • 0.16~0.41
  • NA
  • 0.1~0.039
  • Effective Fno
  • 12.5~31.92
  • Distortion (%)
  • ≤0.7
  • IF (mm)
  • 43
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

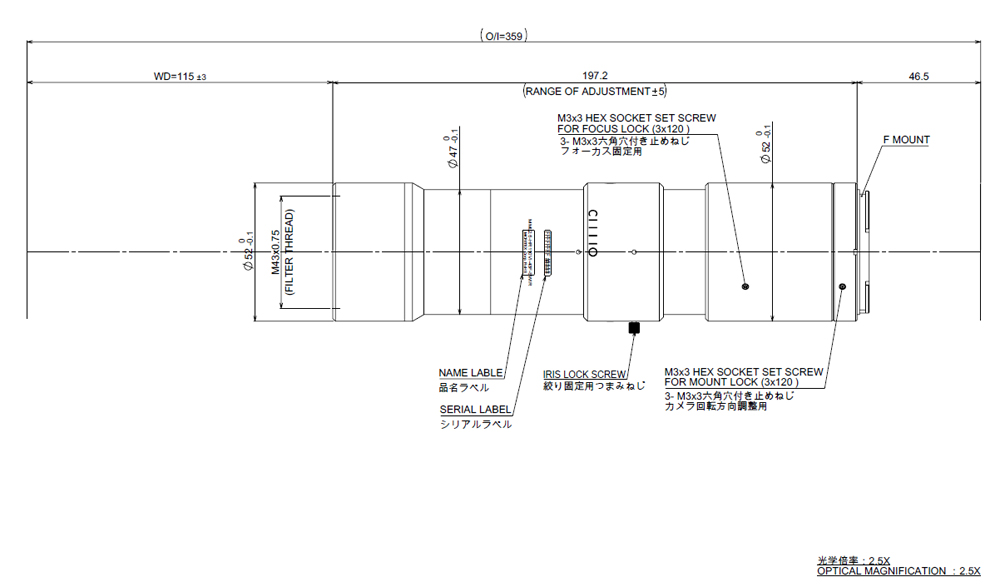

External View
