ML-F80C-0205

▪ Magnification from 0.2× to 0.5× (ML-F80C-0205) and from 0.5× to 1.0× (ML-F80C-0510) with flange focal distance adjustment
▪ Designed with RGB chromatic correction
▪ Low distortion with minimal peripheral brightness fall-off
▪ Maximum applicable sensor size: 82mm
▪ Variable iris
▪ Flange focal distance control enables users to change magnification without additional cost for a complex focus system.

Download DataTechnical Datasheet Drawing Data

Main Applications

: LCD glass inspection

: PCB and substrate inspection

: Printed material and web inspection

Specifications

Spec
ML-F80C-0205

Focal Length (mm)
84.55

Magnification
0.2-0.5

WD (mm)
476.8-223.2

Fno
4.0-22

Distortion
0.0596

Weight (g)
200

Image Format (mm)
82

Mount
M39 x 1

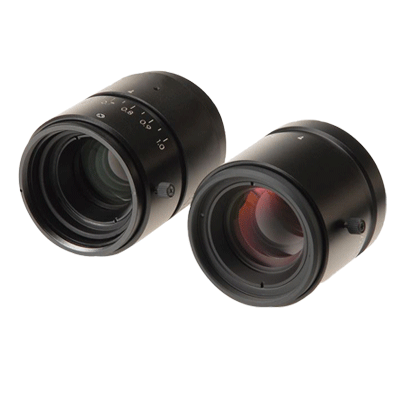

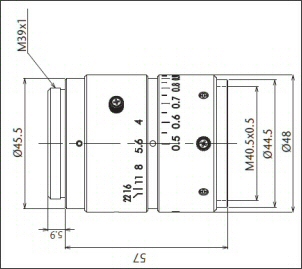

External View

Magnification Range
Supports variable magnification between 0.2× and 0.5× by adjusting the flange focal distance.

Specifications at Different Magnifications

Magnification
WD(mm)
Field of View* Ø (mm)
O/l (mm)
FFD (mm)

× 0.20
476.8
410.0
601.75
78.6

× 0.25
392.3
328.0
521.42
82.8

× 0.30
335.9
273.3
469.28
87.0

× 0.35
295.6
234.3
433.25
91.2

× 0.40
265.4
205.0
407.27
95.5

× 0.45
242.0
182.2
388.02
99.7

× 0.50
223.2
164.0
373.45
103.9

*Values for 82 mm size sensor
