Line Scan/Large Format Lens

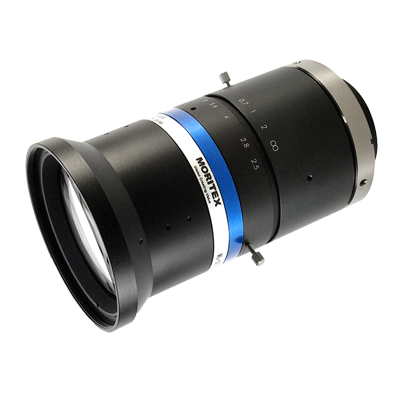

ML-2825M-32M52

▪ Ideal for 3CCD/CMOS and 4CCD/CMOS prism line scan cameras
▪ Designed to cover large format sensors, ≤ IF 32mm, 4K7.5µm
▪ Optimized relative illumination and color imaging performance
▪ F mount and M52 mount are available

Download Data Technical Datasheet Drawing Data Drawing Data（STEP）

Main Applications

: High speed imaging and color printing inspection

: Food and agricultural inspection

: Surface inspection for FPD, wafers, metals, glass

Model Description

Specifications

Spec

ML-2825M-32M52

Focal Length(mm)

28

Magnification x

∞ - 0.081

WD(mm)

∞ - 300

Fno

2.5 - 22

AR Coating

Vis-NIR

Weight(g)

762

Image Format(mm)

32

Mount

M52

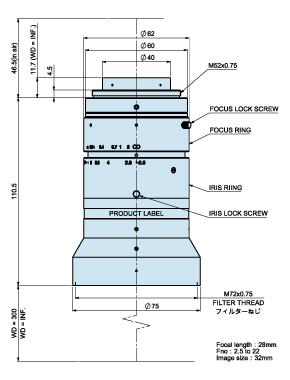

External View
