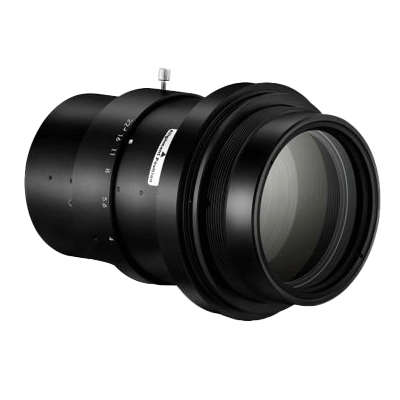

ML-LS9040-67V70-03

▪ High contrast and high resolution for 16K3.5µm and 150MP camera
▪ Designed to cover large format sensors, ≦IF 67mm
▪ Magnification lineup 0.2x, 0.24x, 0.3x, 0.38x, 0.45x
▪ Wide band AR coating (400nm～1100nm)
▪ Designed for common lens mount (V70-mount)

Download Data User Manual Technical Datasheet Drawing Data Drawing Data（STEP）

Main Applications

: PCB inspection

: LCD panel inspection

: Film inspection, Printing inspection, Metal surface inspection

Model Description

Specifications

Spec
ML-LS9040-67V70-03

Focal Length(mm)
93.3

Magnification x
0.3

WD(mm)
356.8

Fno
4.0~22

AR Coating
Vis-NIR

Weight(g)
676

Image Format(mm)
67

Mount
V70

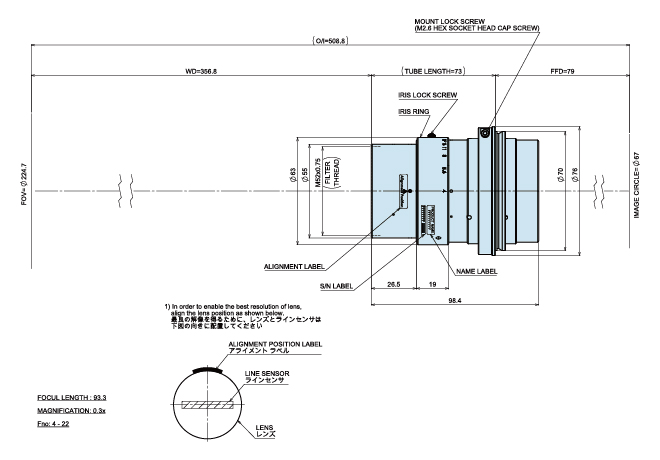

External View
