Bi-Telecentric Lens/Illumination

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

• Spec
• MTI-265-CW-070

• Color
• White

• Lighting Area (φmm)
• 265

• WD (mm)
• 540

• Color temperature (K) Min. - Max.
• 4500～10000

• Dominant wavelength (nm) Min. - Max.
• -

• Beam angle (deg.)
• 0~0.08

• Length (mm) *1
• 680.3

• Front Outer dia. (φmm)
• 300

• Weight (kg)
• 15.1

• Max rated current (mA)
• 700

• Power consumption (W)
• 3

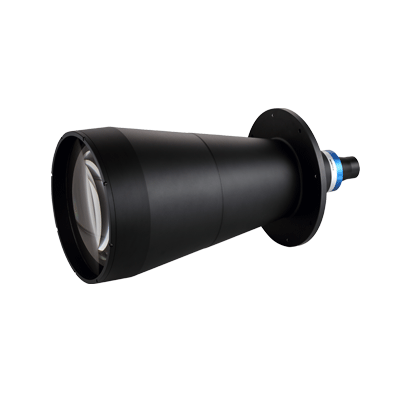

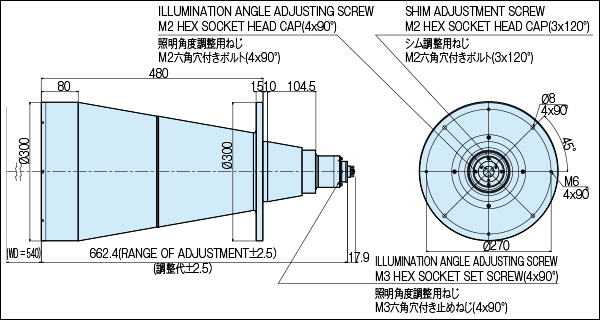

External View

Light Distribution Characteristics
・Maximum rated current is 700mA and electrical power consumption is 3W.
・Recommended controller is MLEP-BO70W Series.
・Blue color and red color is production on demand basis.
・Constant voltage operation type is available on your request.
*1 Lens tube length includes LED illumination unit, and adjustable length allowance is 12.5mm maximum depends on LED.
Inspection data provided for every lens.
