Telecentric Lens Bi-Telecentric Lens/Illumination Macro/CCTV Lens Line Scan/Large Format Lens

Bi-Telecentric Lens/Illumination

MTL-19543M58-022

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ M58Mount : M58P0.75, FB24.06mm
MTL-19543M58-022
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-19543M58-022
Max IF (mm) 43.5
FOV type (Φmm) 195
Mag. (x) 0.223
WD (mm) 365
Field of View 1.1" H 14.1 63
V 10.3 46
D 18.1 81
4/3" H 18.1 81
V 13.6 61
D 22.6 101
35mm H 23 103
V 23 103
D 32.6 146
43.5mm H 100 162
V 67 108
D 43.5 195
Optical specifications Effective F# 13.7
Distortion (%) -0.04
Telecentricity (deg.) 0.04
Resolution
@520nm 		(μm) 39
DOF
@40um 		(mm) 22.0
Mechanical specifications Front Outer dia. (Φmm) 230
Barrel Length (mm) 652.0
Weight (kg) 8.60
Mount M58

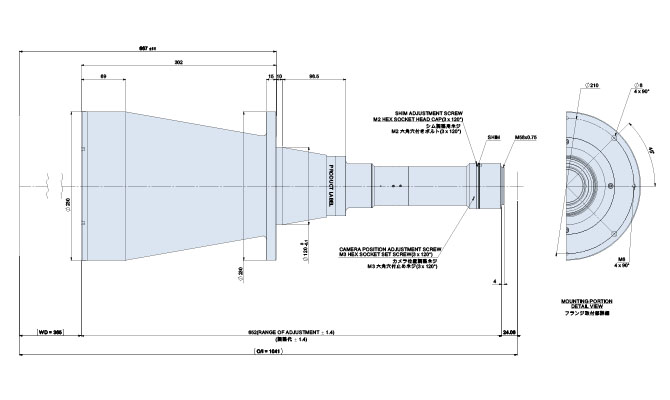

External View
