MTL-15043M58-029

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ M58Mount : M58P0.75, FB24.06mm
MTL-15043M58-029
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-15043M58-029
Max IF (mm) 43.5
FOV type (Φmm) 150
Mag. (x) 0.290
WD (mm) 300
Field of View 1.1" H 14.1 49
V 10.3 36
D 18.1 62
4/3" H 18.1 62
V 13.6 47
D 22.6 78
35mm H 23 79
V 23 79
D 32.6 112
43.5mm H 100 125
V 67 83
D 43.5 150
Optical specifications Effective F# 13.7
Distortion (%) 0.02
Telecentricity (deg.) 0.04
Resolution
@520nm 		(μm) 30
DOF
@40um 		(mm) 13.0
Mechanical specifications Front Outer dia. (Φmm) 180
Barrel Length (mm) 555.0
Weight (kg) 5.10
Mount M58

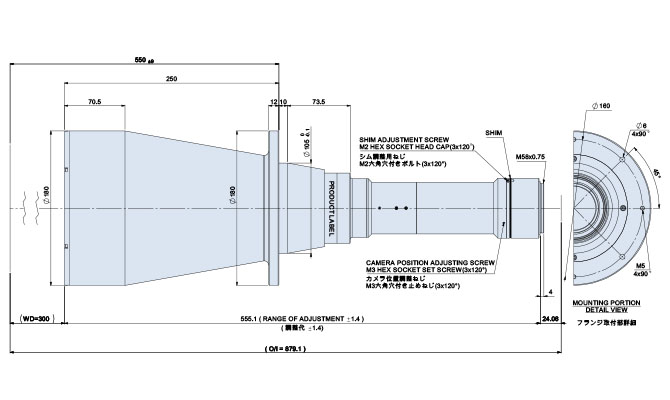

External View
