MTL-6543M58-067

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ M58Mount : M58P0.75, FB24.06mm
MTL-6543M58-067
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-6543M58-067
Max IF (mm) 43.5
FOV type (Φmm) 65
Mag. (x) 0.670
WD (mm) 135
Field of View 1.1" H 14.1 21
V 10.3 15
D 18.1 27
4/3" H 18.1 27
V 13.6 20
D 22.6 34
35mm H 23 34
V 23 34
D 32.6 49
43.5mm H 36.2 54
V 24.1 36
D 43.5 65
Optical specifications Effective F# 13.7
Distortion (%) -0.04
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 13
DOF
@40um 		(mm) 2.4
Mechanical specifications Front Outer dia. (Φmm) 86
Barrel Length (mm) 338.5
Weight (kg) 1.12
Mount M58

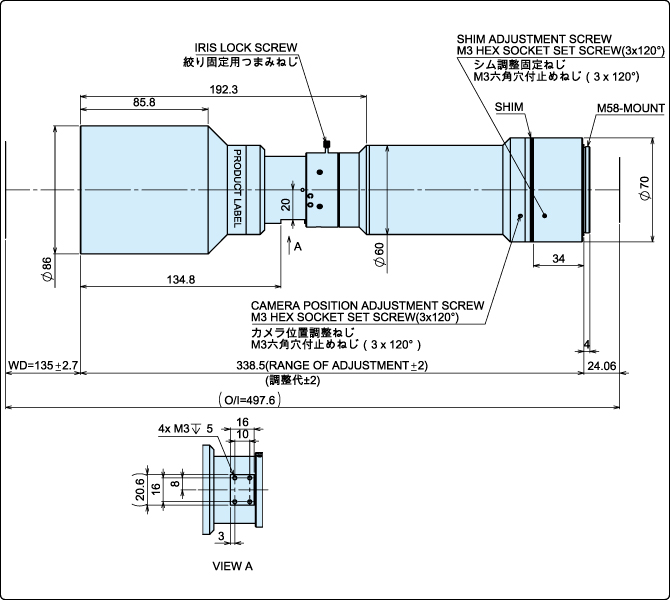

External View
