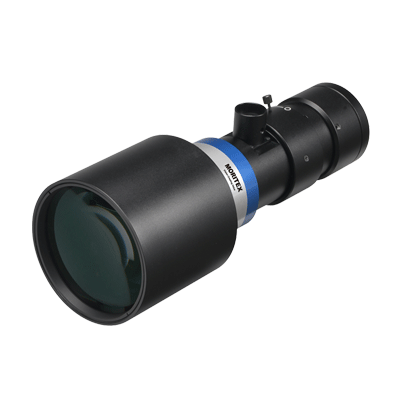

| Spec | MTL-3543M58-124 | |||
|---|---|---|---|---|
| Max IF (mm) | 43.5 | |||
| FOV type (Φmm) | 35 | |||
| Mag. (x) | 1.240 | |||
| WD(mm) | 95 | |||
| Field of View | 1.1" | H | 14.1 | 11 |
| V | 10.3 | 8 | ||
| D | 18.1 | 15 | ||
| 4/3" | H | 18.1 | 15 | |
| V | 13.6 | 11 | ||
| D | 22.6 | 18 | ||
| 35mm | H | 23 | 19 | |
| V | 23 | 19 | ||
| D | 32.6 | 26 | ||
| 43.5mm | H | 36.2 | 29 | |
| V | 24.1 | 19 | ||
| D | 43.5 | 35 | ||
| Optical specifications | Effective F# | 13.7 | ||
| Distortion | (%) | -0.03 | ||
| Telecentricity | (deg.) | 0.05 | ||
|
Resolution @520nm |
(μm) | 7 | ||
|
DOF @40um |
(mm) | 0.7 | ||

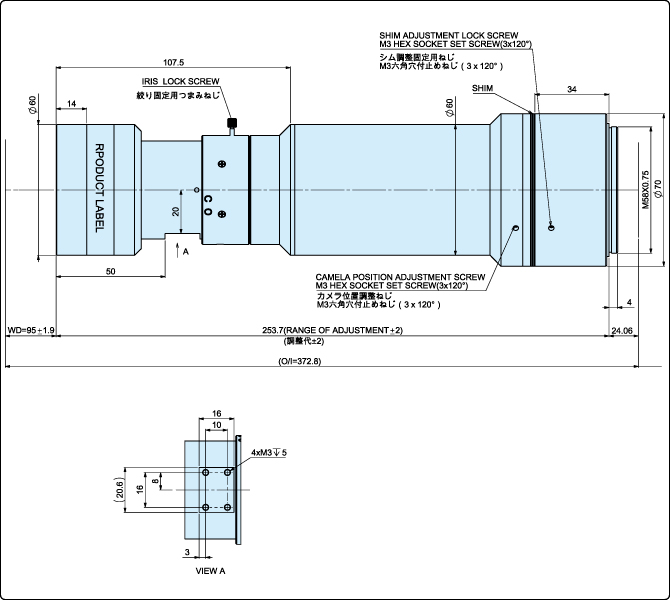

| Mechanical specifications | Front Outer dia. | (Φmm) | 60 | |
| Barrel Length | (mm) | 253.6 | ||
| Weight | (kg) | 0.78 | ||
| Mount | M58 | |||
