MTL-26535P-013

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm
MTL-26535P-013
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-26535P-013
Max IF (mm) 35
FOV type (Φmm) 265
Mag. (x) 0.132
WD (mm) 540
Field of View 2/3" H 8.8 67
V 6.6 50
D 11 83
1.1" H 14.1 107
V 10.3 78
D 18.1 137
4/3" H 13.1 137
V 13.6 103
D 22.6 171
35mm H 23 175
V 23 175
D 32.6 247
Optical specifications Effective F# 9.2
Distortion (%) 0.03
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 44.1
DOF
@40um 		(mm) 42.1
Mechanical specifications Front Outer dia. (Φmm) 300
Barrel Length (mm) 804.4
Weight (kg) 15.7
Mount P

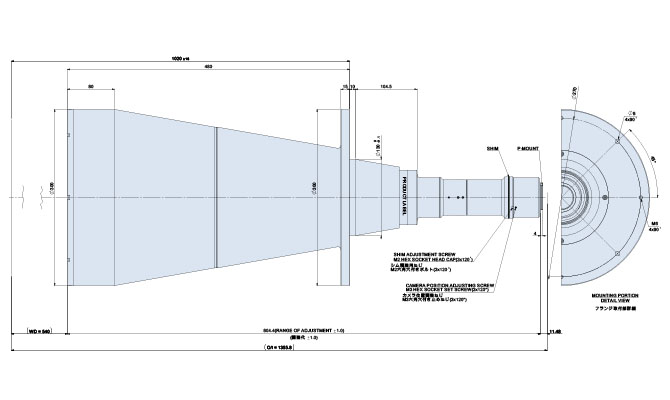

External View
