MTL-24035P-015

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm
MTL-24035P-015
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-24035P-015
Max IF (mm) 35
FOV type (Φmm) 240
Mag. (x) 0.146
WD (mm) 375
Field of View 2/3" H 8.8 60
V 6.6 45
D 11 75
1.1" H 14.1 96
V 10.3 70
D 18.1 124
4/3" H 13.1 124
V 13.6 93
D 22.6 155
35mm H 23 158
V 23 158
D 32.6 223
Optical specifications Effective F# 9.2
Distortion (%) 0.05
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 39.8
DOF
@40um 		(mm) 34.3
Mechanical specifications Front Outer dia. (Φmm) 300
Barrel Length (mm) 769.1
Weight (kg) 15.7
Mount P

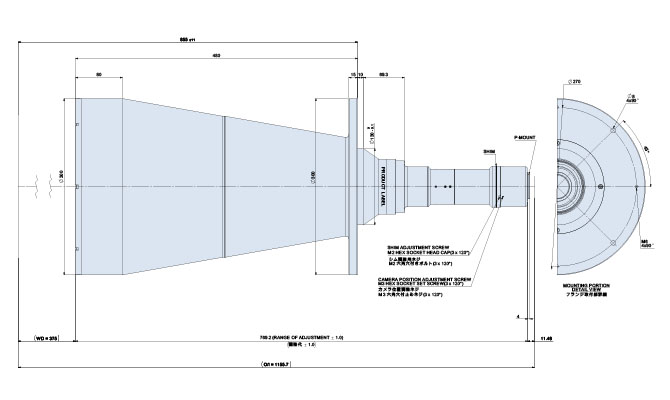

External View
