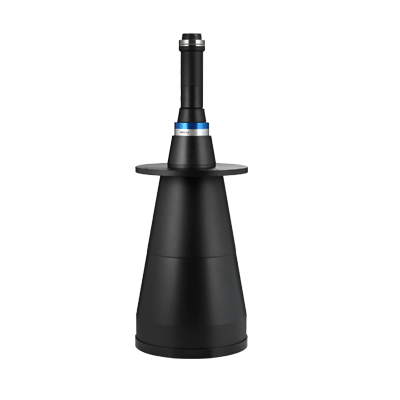

Spec | MTL-15035P-023 | |||
---|---|---|---|---|
Max IF (mm) | 35 | |||
FOV type (Φmm) | 150 | |||
Mag. (x) | 0.233 | |||
WD (mm) | 300 | |||
Field of View | 2/3" | H | 8.8 | 38 |
V | 6.6 | 28 | ||
D | 11 | 47 | ||
1.1" | H | 14.1 | 60 | |
V | 10.3 | 44 | ||
D | 18.1 | 78 | ||
4/3" | H | 13.1 | 78 | |
V | 13.6 | 58 | ||
D | 22.6 | 97 | ||
35mm | H | 23 | 99 | |
V | 23 | 99 | ||
D | 32.6 | 140 | ||
Optical specifications | Effective F# | 9.2 | ||
Distortion | (%) | 0.02 | ||
Telecentricity | (deg.) | 0.04 | ||
Resolution @520nm |
(μm) | 24.9 | ||
DOF @40um |
(mm) | 13.5 | ||

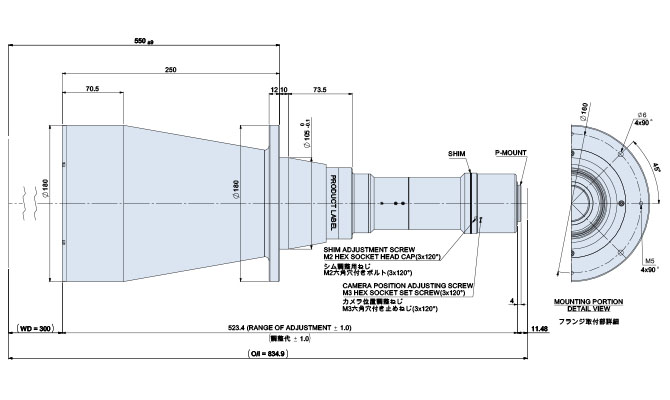

Mechanical specifications | Front Outer dia. | (Φmm) | 180 | |
Barrel Length | (mm) | 522.7 | ||
Weight | (kg) | 4.95 | ||
Weight | P |
