MTL-18023P-013

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm


MTL-18023P-013
Download Data User Manual Drawing Data Drawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-18023P-013
Max IF (mm) 23
FOV type (Φmm) 180
Mag. (x) 0.128
WD (mm) 350
Field of View 1/2" H 6.4 50
V 4.8 38
D 8 63
2/3" H 8.8 69
V 6.6 52
D 11.0 86
1.1" H 14.1 110
V 10.3 81
D 18.1 137
4/3" H 18.1 144
V 13.6 108
D 90 180
Optical specifications Effective F# 8.0
Distortion (%) 0.03
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 39.7
DOF
@40um 		(mm) 39.1
Mechanical specifications Front Outer dia. (Φmm) 210
Barrel Length (mm) 518.7
Weight (kg) 7.38
Mount P

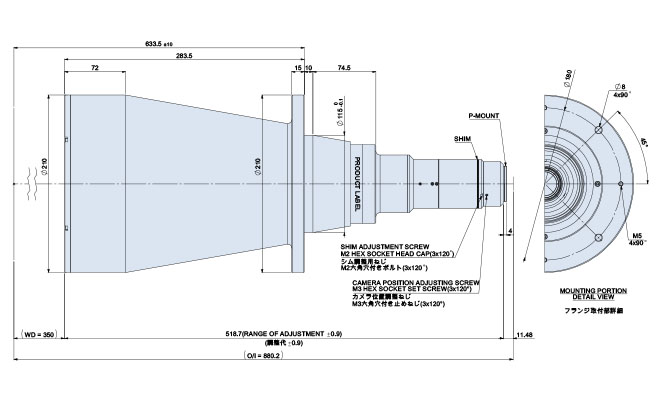

External View
