MTL-19518C-009

▪ Bi-telecentric lens

▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

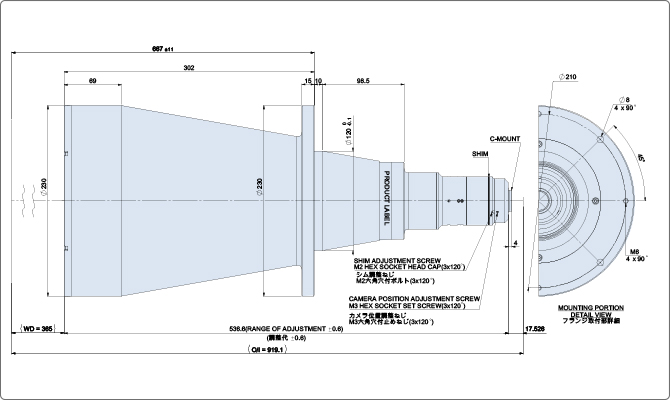

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-19518C-009
Max IF (mm)				18.5
FOV type (Φmm)				195
Mag. (x)				0.095
WD (mm)				365
Field of View	1/2"	H	6.4	67
		V	4.8	51
		D	8	84
	1/1.8"	H	7.1	75
		V	5.3	56
		D	8.9	94
	2/3"	H	8.8	93
		V	6.6	70
		D	11	116
	1.1"	H	14.1	149
		V	45	109
		D	18.1	185
Optical specifications		Effective F#		8.0
		Distortion	(%)	-0.04
		Telecentricity	(deg.)	0.04
		Resolution @520nm	(μm)	53.6
		DOF @40um	(mm)	71.3
Mechanical specifications		Front Outer dia.	(Φmm)	230
		Barrel Length	(mm)	536.6
		Weight	(kg)	8.17
		Mount		C
