MTL-5518C-034

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-5518C-034
Max IF (mm)				18.5
FOV type (Φmm)				55
Mag. (x)				0.335
WD (mm)				135
Field of View	1/2"	H	6.4	19
		V	4	14
		D	8	24
	1/1.8"	H	7.1	21
		V	5.3	16
		D	8.9	27
	2/3"	H	8.8	26
		V	6.6	20
		D	11	33
	1.1"	H	14.1	42
		V	10.3	31
		D	18.1	52
Optical specifications		Effective F#		8.0
		Distortion	(%)	-0.03
		Telecentricity	(deg.)	0.04
		Resolution @520nm	(μm)	15.2
		DOF @40um	(mm)	5.7

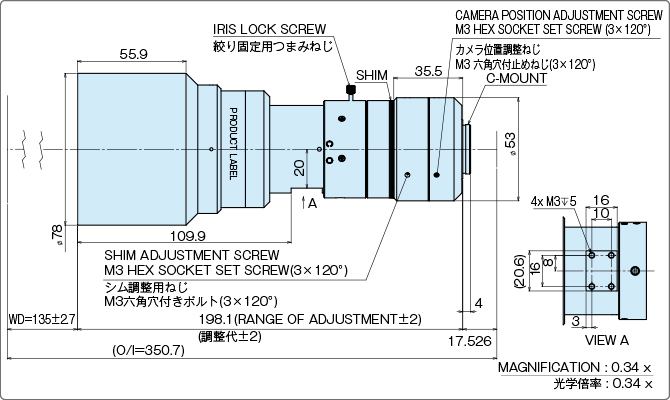

Mechanical specifications		Front Outer dia.	(Φmm)	78
		Barrel Length	(mm)	198.1
		Weight	(kg)	0.79
		Mount		C
