MTL-31011C-004

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 10 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

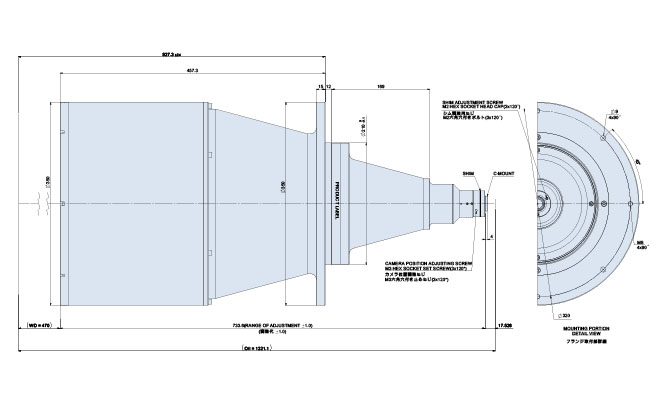

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-31011C-004
Max IF (mm)				11
FOV type (Φmm)				310
Mag. (x)				0.035
WD (mm)				470
Field of View	1/3"	H	4.8	135
		V	3.6	102
		D	6	169
	1/2"	H	6.4	181
		V	4.8	135
		D	8	226
	1/1.8"	H	7.1	200
		V	5.3	150
		D	8.9	251
	2/3"	H	8.8	248
		V	6.6	186
		D	11	310
Optical specifications		Effective F#		8.0
		Distortion	(%)	-0.04
		Telecentricity	(deg.)	0.05
		Resolution @520nm	(μm)	144.0
		DOF @40um	(mm)	512.5
Mechanical specifications		Front Outer dia.	(Φmm)	350
		Barrel Length	(mm)	733.6
		Weight	(kg)	25.4
		Mount		C
