MTL-24011C-005

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 10 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

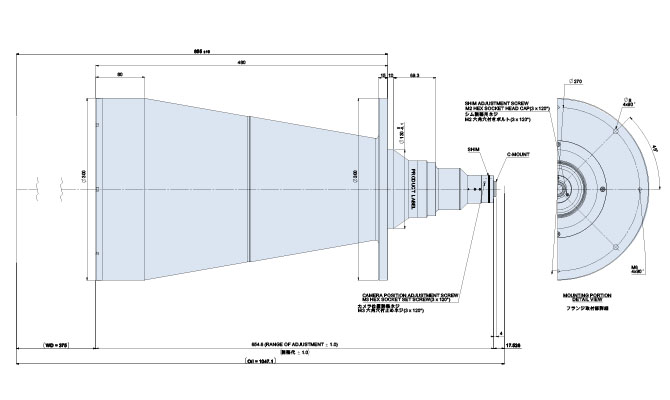

Download Data User Manual Drawing Data Drawing Data (STEP)

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-24011C-005
Max IF (mm)				11
FOV type (Φmm)				240
Mag. (x)				0.046
WD (mm)				375
Field of View	1/3"	H	4.8	105
		V	3.6	78
		D	6	131
	1/2"	H	6.4	140
		V	4.8	105
		D	8	174
	1/1.8"	H	7.1	155
		V	5.3	116
		D	8.9	194
	2/3"	H	8.8	192
		V	6.6	144
		D	11	240
Optical specifications		Effective F#		8.0
		Distortion	(%)	0.04
		Telecentricity	(deg.)	0.05
		Resolution @520nm	(μm)	111.3
		DOF @40um	(mm)	305.9
Mechanical specifications		Front Outer dia.	(Φmm)	300
		Barrel Length	(mm)	654.6
		Weight	(kg)	15.2
		Mount		C
