Macro/CCTV Lens

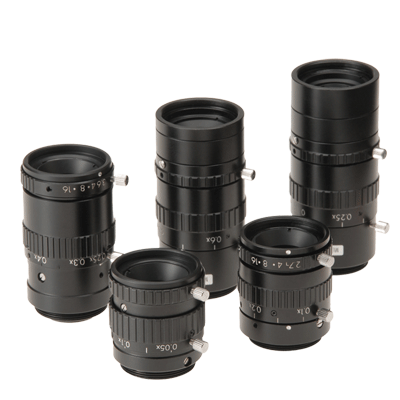

ML-MC25HR

▪ Vibration resistance up to 5G, 10G version optional available
▪ Five models with magnification range from 0.05x to 1.72x (using close-up ring)
▪ Close-up rings can be used to adjust magnification and working distance
▪ Distortion-free, high performance design
▪ Maximum compatible Image format : Diameter 12.8 mm

ML-MC25HR
Download DataTechnical Datasheet Drawing Data Drawing Data （STEP）
Main Applications

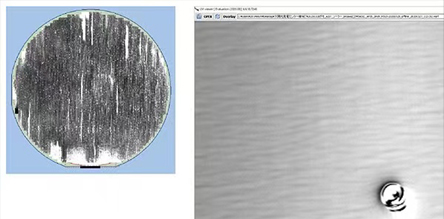

External appearance inspection

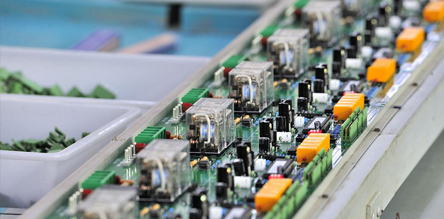

Alignment
Optical Character Recognition
Specifications
  • Spec
  • ML-MC25HR
  • Focal Distance (mm)
  • 25
  • Magnification
  • x0.1 - x0.4
  • O/I (mm)
  • 309.6 - 126
  • WD (mm)
  • 255.9 - 64.6
  • F No.
  • 2.7 - 16
  • TV Distortion (%)
  • 0.05 or less
  • Image format
  • Diameter 12.8mm
  • Weight (g)
  • 52

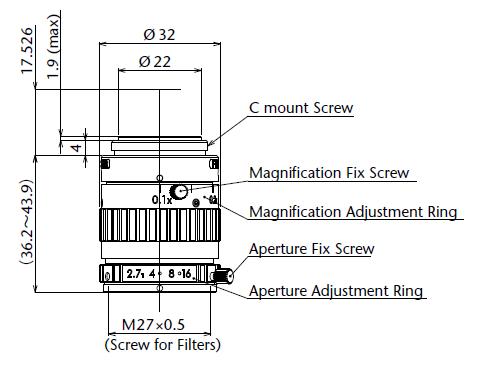

External View

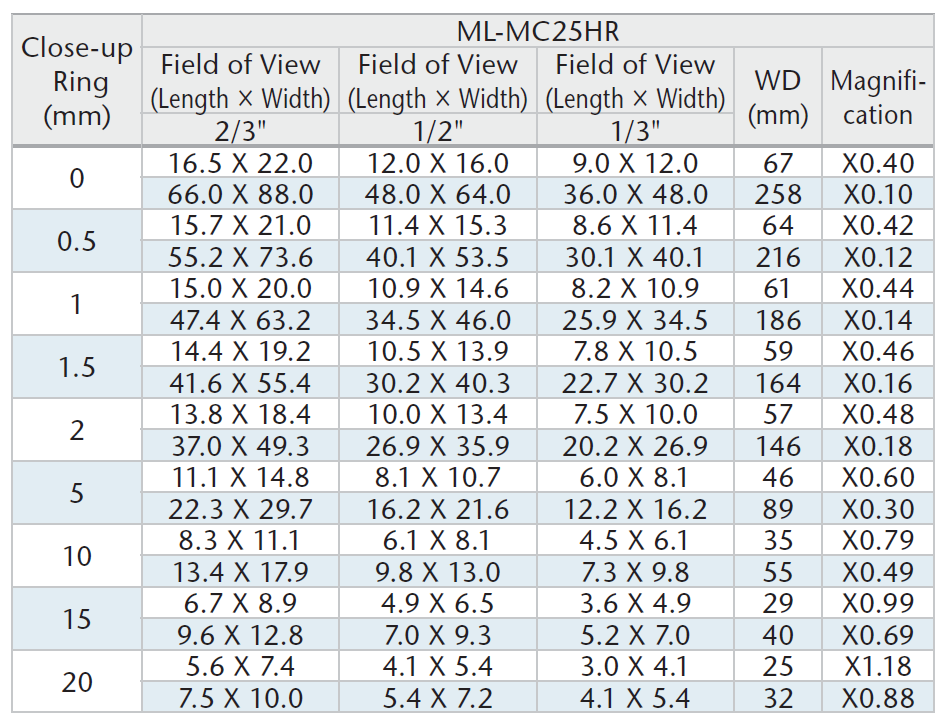

Matrix Chart of Field of View, WD, and Magnification by
Close-Up Ring Lengths
