Telecentric Lens

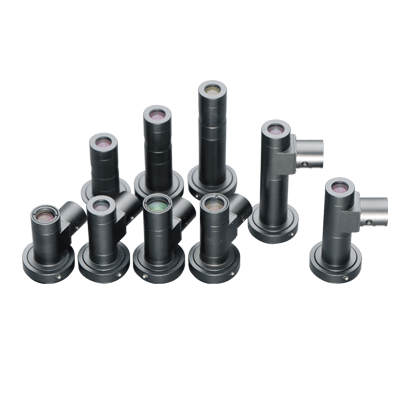

MML1-ST300D

▪ Super long working distance and long depth of field design
▪ All models have uniform coaxial illumination functionality
▪ Very low distortion
▪ Variable iris available for most models
▪ CCD Element Size: 1/2" or smaller

MML1-ST300D
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Alignment
Component recognition and inspection


Model Description


Specifications
  • Spec
  • MML1-ST300D
  • Coaxial Illumination
  • -
  • Magnification
  • 1.00±5%
  • WD (mm)
  • 305
  • Resolution (μm)
  • 16.6-21.5
  • Depth of Field (mm)
  • 1.98-2.56
  • NA
  • 0.020-0.016
  • Effective Fno
  • 24.72-32
  • Distortion (%)
  • -0.019
  • Weight (g)
  • 150
  • Largest Compatible Sensor
  • 1/2"type
  • Mount
  • C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

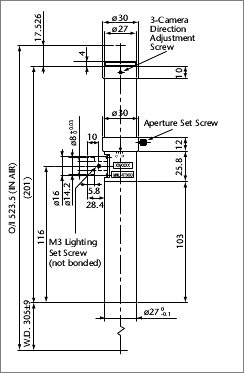

External View
