Telecentric Lens

MML08-HR255

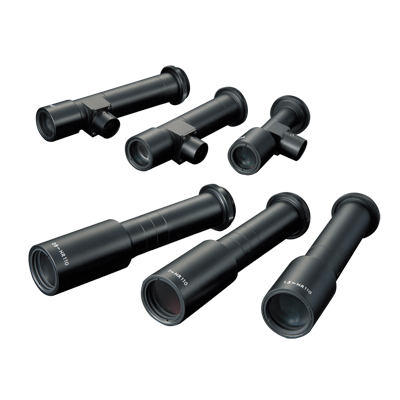

▪ 8 models in 6 types of Magnification

▪ Long WD 220mm~ & High Resolution
▪ Image circle 11mm (2/3 inches)




MML08-HR255
Download DataTechnical DatasheetDrawing Data
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection


Model Description


Specifications
  • Spec
  • MML08-HR255
  • Coaxial illumination
  • -
  • Magnification
  • 0.8x ± 3 %
  • WD (mm)
  • 255.7
  • Resolution （μm）
  • 8.4
  • Depth of Field （mm）
  • 1.3
  • NA
  • 0.04
  • OI（mm）
  • 385.9
  • Distortion （%）
  • ≤0.4
  • Image format
  • 11mm (2/3 inches)
  • Mount
  • C Mount

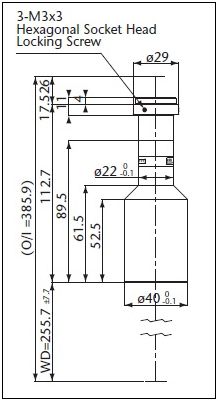

External View
