Telecentric Lens

MML02-220D

▪ Long WD telecentric optical system with very little image distortion
▪ Low magnification models: 0.2×,1×, and 8×
▪ Optional uniform coaxial illumination functionality covering the entire field of view

Download DataTechnical Datasheet Drawing Data

Main Applications

: Alignment

: Component recognition and inspection

Model Description

Specifications

Spec

MML02-220D

Coaxial Illumination

-

Magnification

0.2

WD (mm)

222

Resolution (μm)

16.7

Depth of Field (mm)

10

NA

0.02

Effective Fno

5

Distortion (%)

-0.08

Weight (g)

450

Largest Compatible Sensor

2/3" type

Mount

C Mount

* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

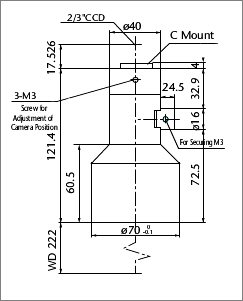

External View
