▪ High resolution throughout the entire field of view
▪ High NA, high contrast, and very low distortion
▪ All models are available with uniform coaxial illumination functionality as an option
▪ Most models are compatible with 2/3" or smaller CCD elements and support mega pixel CCDs, 1.3 mega pixels or greater

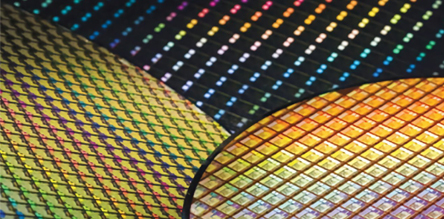

Surface inspection such as silicon wafers and machine components
Metrology and gauging

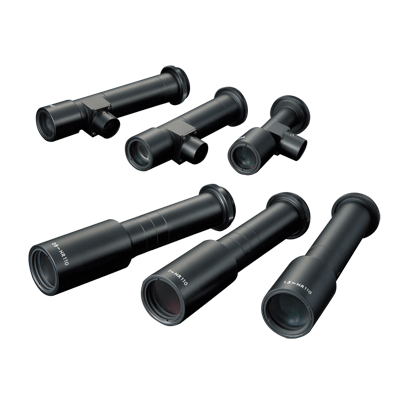

Model Description
Specifications
Spec
MML6-HR65D-VI
Coaxial Illumination
-
Magnification
6.00±5%
WD (mm)
65
Resolution (μm)
3.0-13.9
Depth of Field (mm)
0.06-0.58
NA
0.112
Effective Fno
26.70-124.00
Distortion (%)
-0.016
Weight (g)
102
Largest Compatible Sensor
2/3"
Mount
C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm. * Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

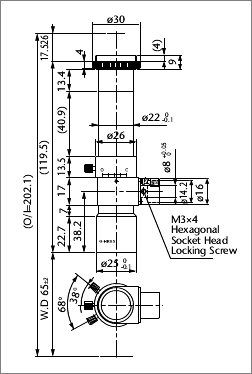

External View
