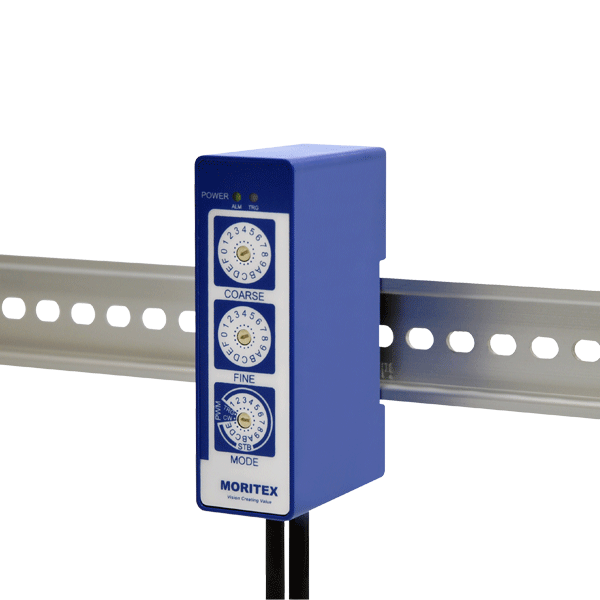

LED Controllers

Download Data Drawing Data Drawing Data（STEP）

Main Applications

• Semiconductor / IC appearance inspection
• Manufacturing inspection (Labeling, Character, Barcode or QR code)
• Automotive component shape appearance inspection

Specifications

• Spec
• CV-DPS-DD-72-1-PRC

• Input voltage
• 24VDC

• Input current
• 3.5A

• Output channel
• 1ch

• Max. output power
• 72W*2

• Output voltage
• 24V

• Output current
• 3A*2

• Output mode
• CW, On/Off, Strobe

• Dimming step
• 256step

• PWM frequency
• 100kHz

• External control voltage
• Trigger ON : 5V - 24V,
  Trigger OFF : <2V

• Input connector
• Free

• Output connector
• JST-F

• Operating humidity.
• 0-45deg.

• Operating humidity.
• Less than 80%RH

• External dimensions
• W30mm x H95mm x D53mm

• CE
• EN55011, EN61000

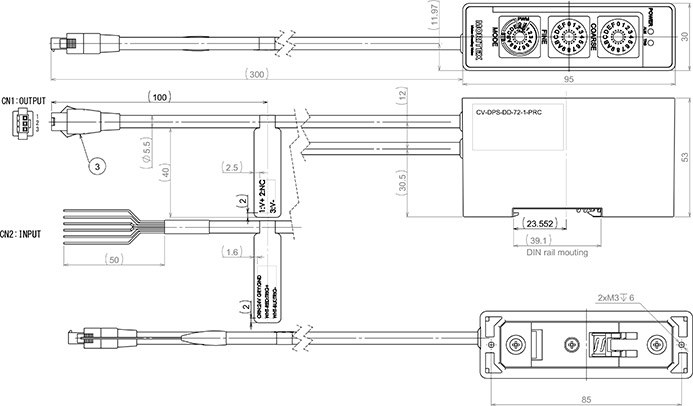

External View
